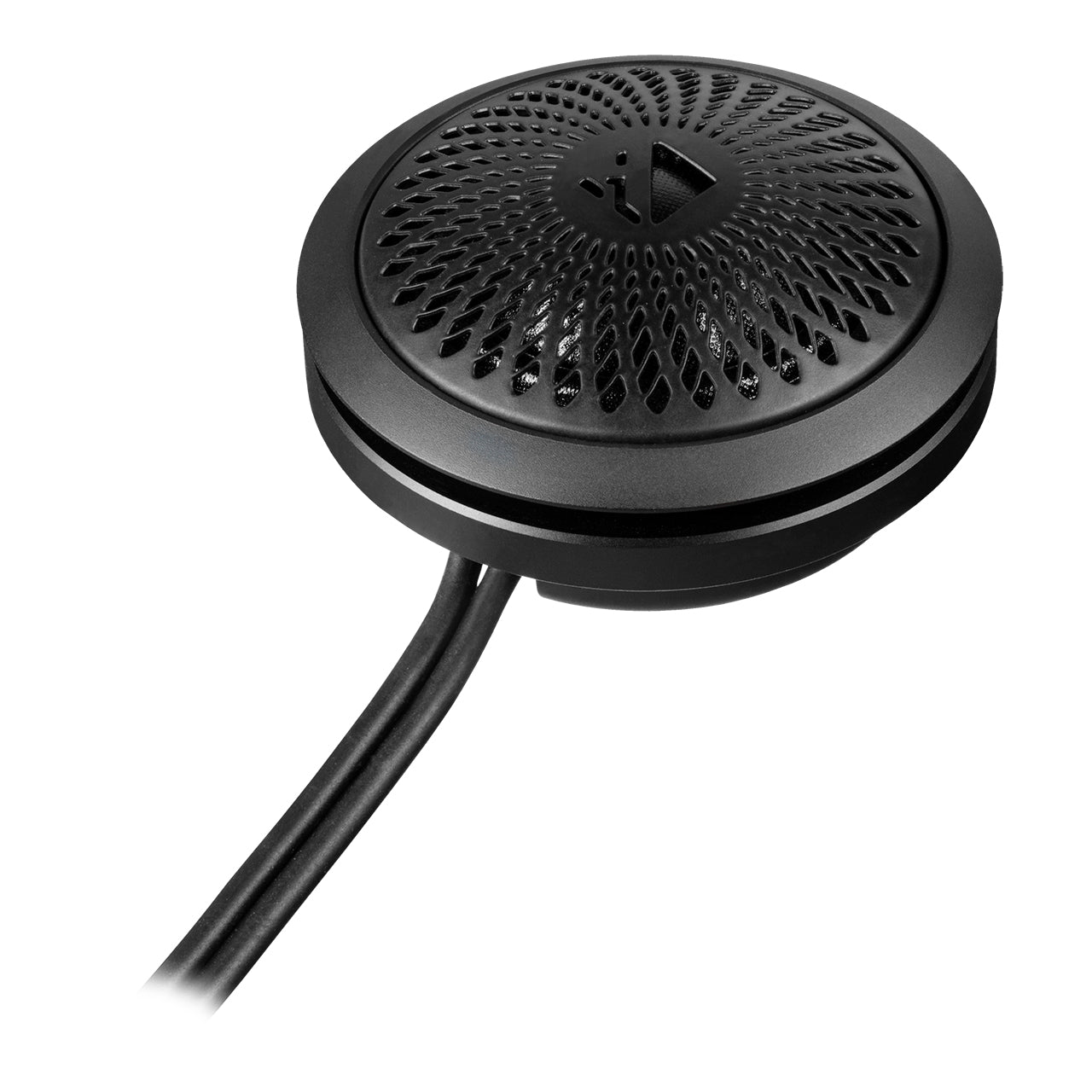

PR T25-S
“Pure series” silk dome tweeters
Features
- 1” / 25 mm premium tweeter with coated silk-dome for precise treble response with finest details and an accurate, natural sound reproduction
- Compact design with multiple mounting options for universal installation
- Anodized aluminum flush mount housing with solid mounting ring for discreet installation
- Cover grille included in two exclusive, swappable designs
- Lowest manufacturing tolerances and exclusive use of premium materials
- Highly efficient neodymium magnet for an optimal linear magnetic flux
- High-grade aluminum tweeter pod (PR ATP25) optionally available
Technical data
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency response | 2,500 Hz – 25,000 Hz | |
| Resonance frequency | Fs | 1,400 Hz |
| Sensitivity |
SPL |
92 dB @ 2,83V / 1m |
| Voice coil diameter | ø | 25 mm |
| Cone area | Sd | 4.9 cm² |
| Moving mass | Mms | 0.3 g |
| Cone material | Coated silk dome | |
|
Outer diameter (more data see data sheet) |
ø | 37.7 mm / 1.48″ |
|
Installation diameter (more data see data sheet) |
ø | 37.7 mm / 1.48″ |
|
Installation depth (more data see data sheet) |
10.6 mm / 0.42″ | |
| Recommended crossover frequencies for the highpass | ||
| Slope | Minimum crossover frequency | |
| 6 dB/Octave | 4,000 Hz | |
| 12 dB/Octave | > 3,000 Hz | |
| 24 dB/Octave | > 2,500 Hz |
