Description
IK-S10-SVC2

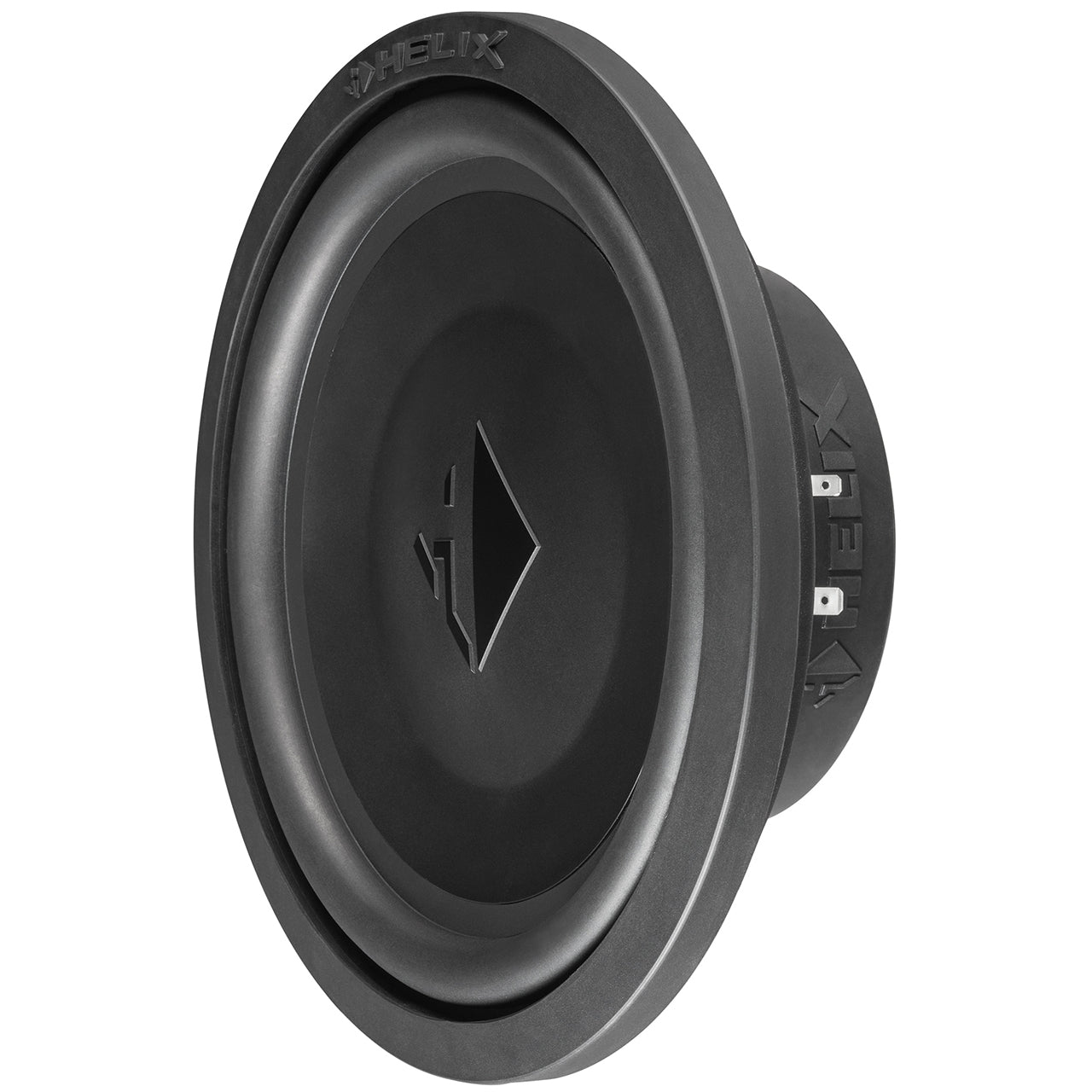

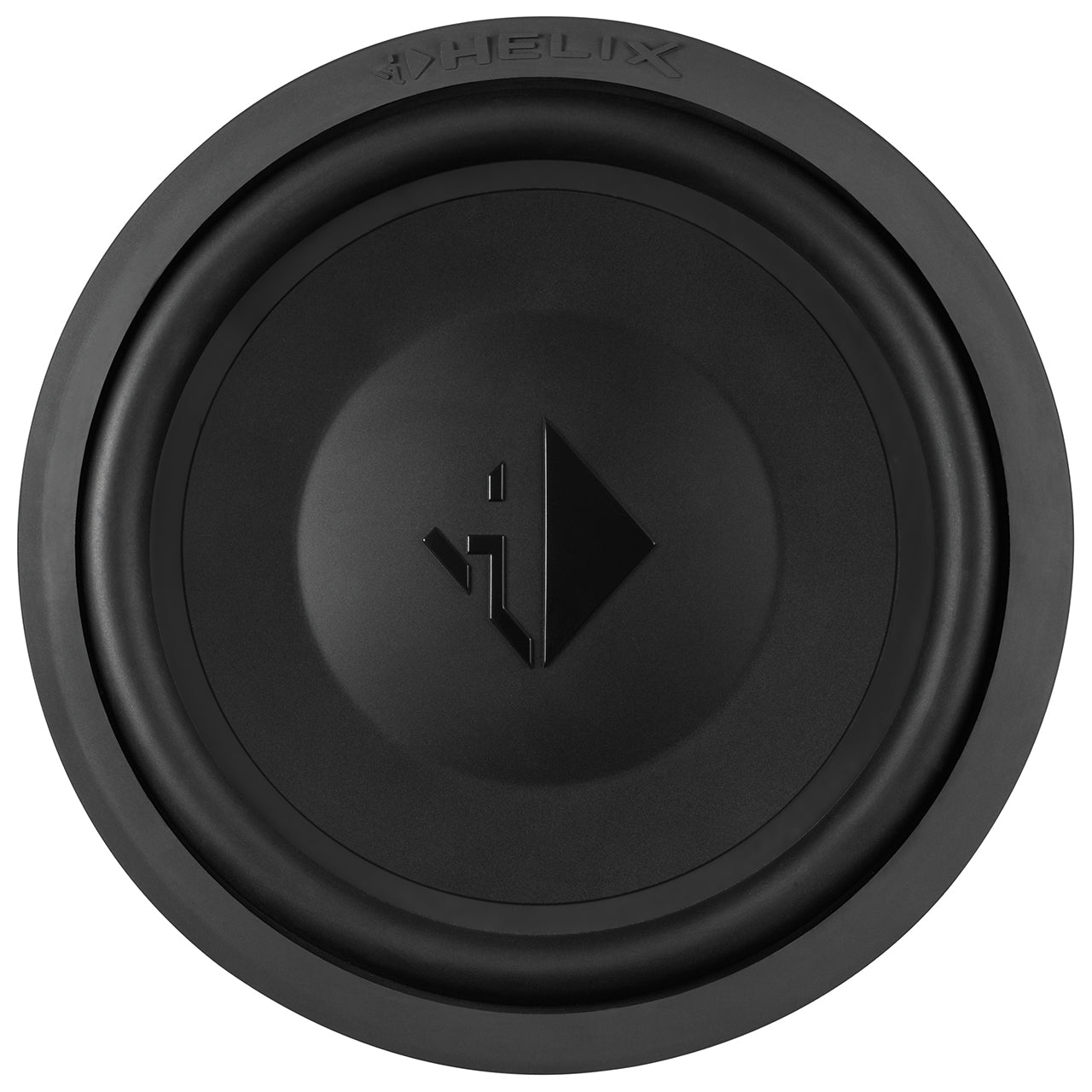

Shallow 10″ single voice coil subwoofer
Features

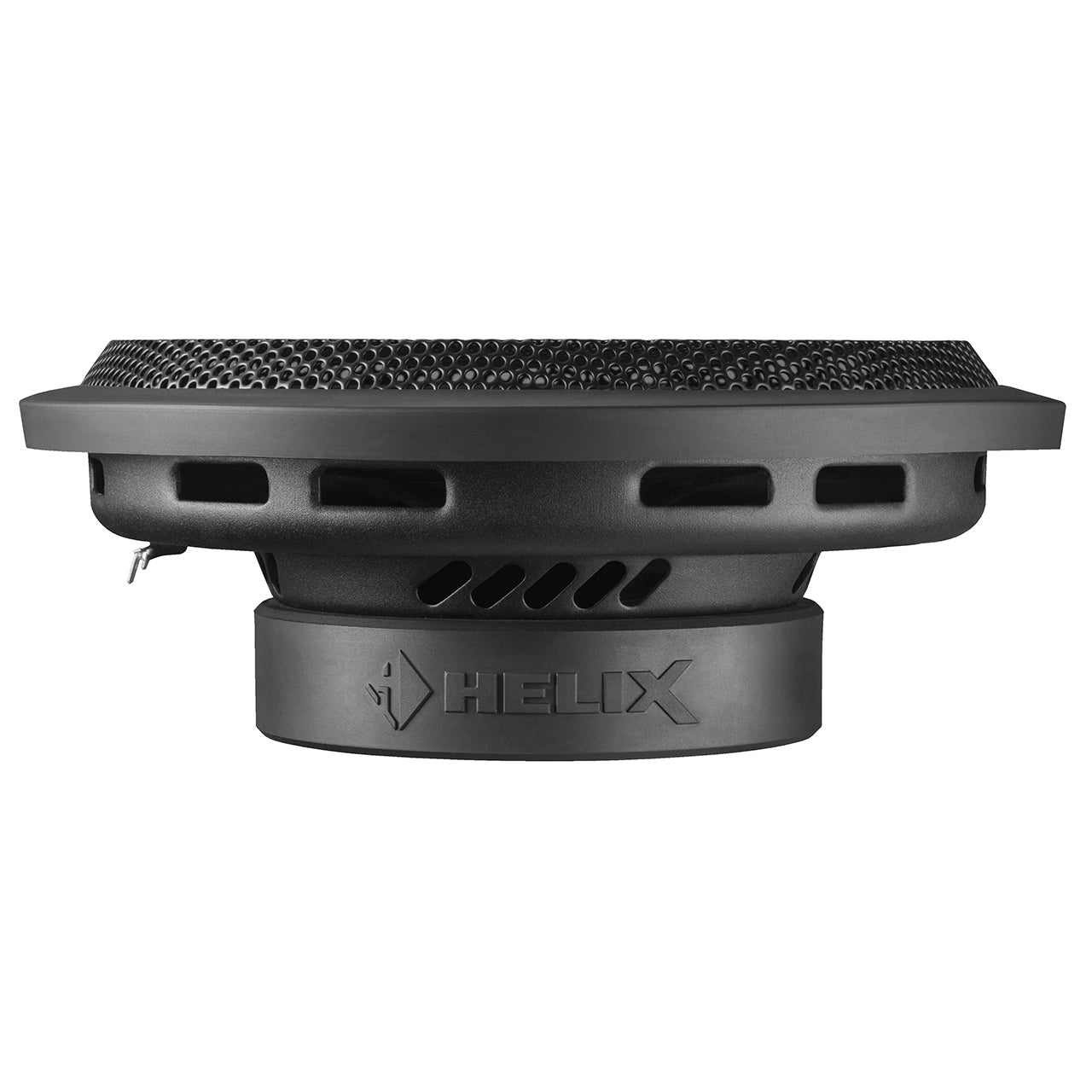

- Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
- 2 Ohm single voice coil
- Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations
- Extremely stiff sandwich paper cone
- Long-excursion rubber surround for highest mechanical rating
- Rugged magnet cover with HELIX lettering for perfect magnet protection

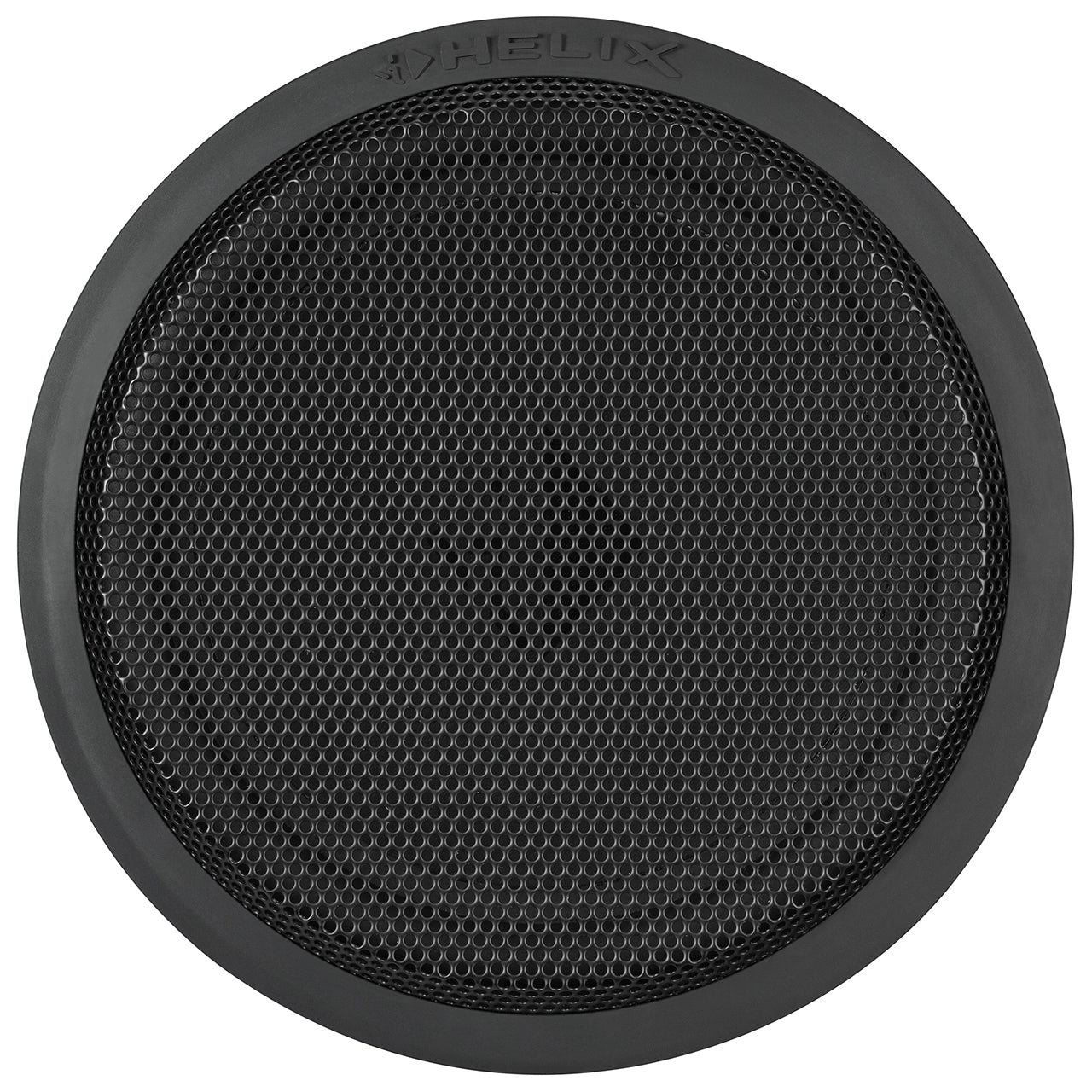

- Enclosure connection terminal, grille and gasket included in delivery
Technical data
| IK S10-SVC2 – 1 x 2 Ohms | ||
| Power handling RMS / max. | P | 300 / 600 Watts |
| Impedance | Z | 1 x 2 Ω |
| DC resistance | Re | 2.0 Ω |
| Resonance frequency | Fs | 37 Hz |
| Mechanical Q factor | Qms | 7.61 |
| Electrical Q factor | Qes | 0.54 |
| Total Q factor | Qts | 0.51 |
| Compliance | Cms | 150 μm/N |
| Equivalent air volume | Vas | 26 L |
| Force factor | B*I | 10.1 Tm |
| Sensitivity | SPL | 93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m |
| Cone area | Sd | 353 cm² |
| Moving mass | Mms | 119 g |
| Cone material | Sandwich paper cone | |
| Mechanical resistance | Rms | 3.7 kg/s |
| Voice coil diameter | ø | 50.8 mm |
| Voice coil winding height | 18 mm | |
| Max. linear excursion | Xmax | +/- 6.0 mm |
| Outer diameter | ø | 262 mm / 10.31″ |
| Installation diameter | ø | 229 mm / 9.01″ |
| Installation depth | 84.5 mm / 3.33″ |
